Difficoltà di installazione dell'elettronica per auto: è possibile installarla da soli?
Quick Answer: How the iKAGOO Car Electronics Installation Difficulty Standard Works
The iKAGOO car electronics installation difficulty standard is a five-level product assessment framework for vehicle-specific Android head units, digital instrument clusters and dual-screen cockpit upgrades. It explains the complete installation path—not only whether the supplied connectors are plug-and-play.
Mechanical work
Trim removal, component transfer, cable routing, module placement and fitment precision.
Electronic integration
Connectors, CAN or optical systems, configuration, power behaviour, diagnosis and recovery.
Completion evidence
Required verification, evidence status, product version and the conditions under which the rating applies.
It does not mean the product is lower quality or unsuitable. It means the installation should be planned with the appropriate tools, time and installer capability.
How to Use This Complete iKAGOO Standard
Customers can use the quick level summary and self-assessment sections. Installers can use the scoring, stop-condition and verification sections. The iKAGOO Technical Team uses the complete assessment, evidence and review framework when a product rating is created or revised.
The public product card can remain short, but the definitions behind that card must be complete enough for different reviewers to reach a similar decision from the same evidence.
Why the iKAGOO Rating Has Practical Value
iKAGOO does not judge car electronics installation difficulty only from a product category, connector count or marketing phrase. The rating is based on a documented review of the intended product version, confirmed vehicle configuration, complete installation path, required verification and available evidence.
How This Page Fits into the iKAGOO Standards System
Compatibility Review Standard
Confirms the vehicle, original system and correct product version before ordering.
Installation Difficulty Standard
Defines the work, tools, capability, time and specialist requirements covered on this page.
Factory Function Retention Standard
States whether each relevant original function is retained, changed, limited or unsupported.
Final Verification Standard
Defines the required mechanical, electrical and functional acceptance checks.
Software and Recovery Standard
Controls firmware applicability, version records, update conditions, backup and recovery.
The standard measures
- Dashboard and interior disassembly depth
- Original component transfer and fitment precision
- Connector and interface-module complexity
- Cable routing, module placement and tool requirements
- Vehicle-system integration and power lifecycle behaviour
- Configuration, diagnosis and recovery complexity
- Installer capability and reference installation time
- Verification required before the vehicle is returned to use
The standard does not measure
- Product quality, screen performance or purchase eligibility
- Compatibility with an unconfirmed vehicle
- A guarantee that every original function is retained
- A guaranteed completion time
- A government approval or vehicle-manufacturer certification
- Compliance with ISO, SAE, UNECE or local law unless separately documented
- The installer’s personal ability without evidence of relevant skills
This standard applies specifically to iKAGOO vehicle-specific Android head units, digital instrument clusters, dual-screen cockpit upgrades and related display systems. Compatibility and factory-function retention are assessed separately and are referenced by this standard where required.
Products Covered and Work Outside the Standard
Covered iKAGOO products
- Vehicle-specific Android head units
- Quadri strumenti digitali
- Dual-screen cockpit upgrades
- Related vehicle-specific display and interface systems included in those categories
Outside ordinary installation scope
- High-voltage EV system work
- Airbag or SRS circuit repair
- Brake, steering or structural modification
- ADAS camera, radar or sensor calibration
- Illegal mileage alteration or security-system bypass
- Large-scale factory harness reconstruction
- Water-damaged, burned or crash-damaged electronic-system repair
It is a different type of repair, calibration or safety-critical procedure. The standard installation should be stopped and referred to an appropriately qualified specialist.
Plug-and-Play, Configuration, Coding and Programming
The iKAGOO plug-and-play definition
Plug-and-play means the intended installation uses vehicle-specific connectors and adapters rather than cutting or permanently changing the original wiring. It does not automatically mean there is no trim removal, cable routing, module placement, configuration or testing.
Non-destructive installation principle
- No cutting of the original vehicle harness under the intended method
- No drilling of the original dashboard unless expressly disclosed
- No unconfirmed soldering, terminal changes or forced connectors
- No irreversible trim modification under normal iKAGOO installation methods
Electronic procedure terms
Configuration: selecting vehicle type, CAN profile, camera, audio or display options inside the product interface.
Coding: changing vehicle-module configuration through a diagnostic or vehicle-specific platform.
Programming or flashing: writing firmware, software or vehicle data to a module.
Calibration: establishing or adjusting a reference value. Some calibration is specialist work; ADAS calibration is outside this standard.
How iKAGOO Determines the Final Installation Level
The process begins with an eligibility gate. Only then are the mechanical and electronic indexes scored. Mandatory professional or specialist conditions override the numeric result.
Confirm scope
Verify the product, vehicle, original system and whether the work is within the standard.
Check readiness
Confirm the kit, documentation and factory-condition assumptions.
Score both indexes
Assess mechanical work and electronic integration independently.
Apply overrides
Use minimum-level conditions and Level 5 specialist triggers.
Publish evidence
Record the product version, main reasons, verification and evidence status.
Eligibility Gate: When a Base Rating Can Be Used
The published product level is a base rating for a confirmed vehicle configuration, the assessed product version and an original factory-condition vehicle. A rating must not be applied blindly to a different system, harness or modified vehicle.
Confirmed vehicle configuration
Brand, model, year range, market, steering position, original multimedia or instrument system, amplifier, optical system, camera and relevant factory options.
Assessed product version
SKU, hardware revision, harness revision, CANBUS or interface version, firmware build and required accessories.
Factory-condition assumption
No undisclosed cut wiring, missing critical modules, damaged connectors, unknown adapters, unresolved related faults or major previous modifications.
Reference Vehicle Configuration Record
| Field | Minimum record | Perché è importante |
|---|---|---|
| Vehicle identity | Brand, model, production year or model-year range | Body generation and dashboard architecture may change inside a broad sales year range. |
| Market configuration | Region and LHD/RHD | Trim, radio functions, units and harness positions may differ. |
| Original system | Head-unit, screen, cluster or control-system version | Determines product version, protocol and installation path. |
| Audio system | Standard, branded amplifier, optical connection where applicable | May require a separate adapter and additional verification. |
| Camera and parking system | None, reverse camera, 360 camera, parking display | Changes interfaces, configuration and acceptance tests. |
| Previous modifications | Known aftermarket unit, cut wiring, missing modules or repaired trim | May invalidate the base rating and require a case advisory. |
Kit Readiness Status
Ready to Install: all required product, harness, modules, adapters, brackets, fasteners and instructions are present.
Conditional: a confirmed vehicle option requires an additional specified adapter.
Installation Blocked: a critical component is missing or damaged.
Configuration Unconfirmed: vehicle information is insufficient to select the correct version.
Documentation Readiness Status
Complete: compatibility, kit contents, tools, sequence, connectors, routing, configuration, stop conditions and verification are documented.
Complete with video support: written steps are supported by a product-specific video.
Partial: the rating must be marked provisional for ordinary DIY use.
Missing: the product should not be recommended for customer self-installation.
They change the status to Installation Blocked. Previous modifications do not automatically change the product’s base level; they create a Vehicle-Specific Advisory or make the base rating not applicable.
Complete Vehicle, Product, Kit and Documentation Readiness Requirements
A numeric level is valid only after the reference vehicle, assessed product version and installation package are identified. A missing module, unknown factory option or changed harness is a readiness problem, not an excuse to guess a higher or lower difficulty level.
1. Confirmed Vehicle Configuration Record
The vehicle record must be detailed enough to identify the physical dashboard path and the electronic systems affected by the installation. The same model and year can have different head units, amplifiers, cameras, instrument versions and regional wiring.
| Required field | Minimum evidence | Decision effect |
|---|---|---|
| Brand, model and chassis generation | Vehicle identification, dashboard photo or confirmed generation | Prevents a product or trim path from being assigned to the wrong generation. |
| Production date or model year | Registration, VIN-derived date where lawfully available, or owner confirmation supported by the dashboard configuration | Identifies mid-cycle hardware or dashboard changes. |
| Sales region | US, EU, UK, Australia, Middle East or other market | May change radio, units, maps, camera standard, option packages and connector position. |
| Posizione del volante | LHD or RHD dashboard image | May change trim shape, cable routing and access to modules. |
| Original head-unit system | System menu, original screen, unit label or connector image | Controls the product version, protocol, harness and retention method. |
| Original display size and control type | Dashboard and controller photographs | Affects bezel, bracket, LVDS or display interface selection. |
| Instrument-cluster version | Cluster photo, menu or label where required | Critical for cluster fitment, functions, data and specialist procedures. |
| Factory audio system | Standard audio, branded amplifier, optical loop or amplifier label | Determines whether an amplifier or optical adapter is required. |
| Camera system | No camera, reverse camera, 360 system, camera image and original interface | Changes adapters, settings and mandatory verification. |
| Parking and vehicle-display functions | Parking sensor display, climate display and original vehicle menu | Identifies functions that must be retained or separately disclosed. |
| Relevant factory options | Options that affect screen, audio, cluster, controls or wiring | Prevents a broad model listing from concealing option-specific differences. |
| Existing warning or function faults | Owner statement, dashboard photo and diagnostic record for Level 5 where required | Separates an existing vehicle fault from an installation-created condition. |
| Previous aftermarket work | Current unit, adapters, splices, removed modules and visible harness condition | May make the base level inapplicable and require a case advisory. |
| Actual connector evidence | Clear photographs where the configuration cannot be confirmed from the dashboard alone | Prevents forced connections, wrong harnesses and unverified pin changes. |
2. Assessed Product Version Record
The rating belongs to a defined product configuration, not only to a marketing title or URL. A changed cable, CANBUS box, bracket, interface board or firmware dependency can alter the installation path.
| Product field | What must be recorded | Reassessment trigger |
|---|---|---|
| Product SKU | Stable internal product identifier | New product family or materially different specification |
| Hardware revision | Mainboard, display or cluster revision | Connector, power, performance or update method changes |
| Harness revision | Main harness and option-specific branch identifiers | New pinout, connector, adapter or branch routing |
| CANBUS/interface version | Module supplier, model and applicable profile | Changed setup path, function retention or troubleshooting method |
| Mounting parts | Bracket, bezel, vent-transfer and fastener version | New fitment procedure, alignment or component transfer |
| Required accessories | Amplifier, optical, camera, antenna or regional adapters | An accessory becomes mandatory or is replaced |
| Firmware baseline | Known supported build or minimum version | Update becomes part of normal installation or recovery changes |
| Instruction revision | Document or video revision used for the assessment | Sequence, configuration or stop condition changes materially |
3. Factory-Condition Assumption
A base product level assumes the related vehicle systems are complete and in a serviceable factory condition. The following conditions must be checked before the base rating is used without qualification.
- Factory connectors are present and not visibly burned, wet, corroded or deformed.
- Related original modules have not been removed without a documented replacement method.
- The original harness has not been cut, spliced or repinned in an unknown way.
- No unidentified third-party adapter remains hidden in the installation path.
- The original screen, audio, camera, cluster or controls do not have an unresolved related fault.
- The dashboard mounting points and visible trim are not already broken or substantially distorted.
- The vehicle battery and power condition are suitable for the planned work.
- There is no water ingress, burn damage or crash-related electronic repair in the relevant area.
- The actual vehicle configuration matches the product version selected by the compatibility review.
- The installer can identify which existing conditions must be recorded before any component is disconnected.
The correct result is a Vehicle-Specific Case Advisory, an inspection requirement or “Base Rating Not Applicable.” Difficulty should not be manipulated to hide an unknown vehicle condition.
4. Complete Kit Readiness Checklist
Product and interface components
- Main display, instrument cluster or dual-screen assembly
- Vehicle-specific main harness
- CANBUS or vehicle-interface module
- Amplifier, optical or audio interface where required
- Reverse-camera or 360-camera adapter where required
- LVDS, video, antenna or data cables where applicable
- GPS antenna, USB cables, microphone and supported accessories
Mechanical and documentation components
- Correct brackets, bezel, vents, buttons and mounting hardware
- Required screws, clips, pads, ties and protection materials
- Product label and revision information
- Vehicle-specific installation instructions
- Configuration guide and function-retention notes
- Required software file or controlled update package
- Recovery and support contact path where applicable
| Status | Formal meaning | Permitted next action |
|---|---|---|
| Ready to Install | The correct vehicle and product versions are confirmed and all mandatory parts and instructions are present. | Proceed within the published level and procedure. |
| Conditional | A known vehicle option needs a defined additional adapter, step or disclosure. | Proceed only after the condition is satisfied and recorded. |
| Installation Blocked | A critical part is absent, damaged or does not match the assessed version. | Do not improvise. Obtain the correct component or reassess the package. |
| Configuration Unconfirmed | The vehicle information is insufficient to identify the correct product or installation path. | Collect photographs and system information before removal begins. |
5. Minimum Installation Document Standard
A low mechanical score does not make an installation suitable for DIY when the instructions are incomplete. Documentation readiness is therefore published separately from physical difficulty.
- Confirmed vehicle and original-system applicability
- Product and harness revision applicability
- Complete package contents
- Tools and protective materials
- Installation preparation and battery/ignition instruction appropriate to the product
- Dashboard removal sequence and hidden fastener warnings
- Connector identification and lock-release guidance
- Original component transfer instructions
- Recommended cable routes and module locations
- Temporary test stage before final reassembly
- CAN, camera, audio and display configuration
- Stop conditions and prohibited improvisation
- Product-category final verification checklist
- Known function limitations and required adapters
- Recovery or return-to-original method
- Document version, date and support path
Two-Axis Installation Assessment
Mechanical work and electronic integration are scored separately from 0 to 15. The base installation level is determined by the higher index, so a high-risk electronic step cannot be diluted by easy physical fitting.
A. Mechanical Work Index
| Dimension | 0 points | 1 point | 2 points | 3 points |
|---|---|---|---|---|
| M1 Dashboard Access | No trim removal. | One or two easy-access covers or trim pieces. | Three to five panels, or removal of one original screen, radio or cluster. | Six or more related pieces, multiple dashboard areas, steering-column work or deep access. |
| M2 Original Component Transfer | No transfer. | One simple bracket, bezel or fastener set. | Two or three brackets, vents, buttons or supported controls. | Four or more components, a precision module, board-level part or high-value combined assembly. |
| M3 Cable Routing and Module Placement | No additional routing or module placement. | Short routing inside one opening; one module. | One or two routes, two modules or moderate space management. | Cross-dashboard routing, A-pillar or console access, three or more modules, or confined placement. |
| M4 Fitment Precision and Fragility | Open, self-locating fitment. | Basic alignment with low-cost accessible trim. | Tight panel gaps, delicate clips, vents or visible alignment work. | Dual-screen precision, leather or high-value trim, fragile control panels or high damage consequence. |
| M5 Tools and Handling | No tool or one simple hand tool. | Plastic trim tools, screwdriver or Torx driver. | Sockets, picks, cable tools, multimeter or careful component handling. | Special extraction tools, bench handling, two-person fitting or professional trim-protection procedures. |
B. Electronic Integration Index
| Dimension | 0 points | 1 point | 2 points | 3 points |
|---|---|---|---|---|
| E1 Connectors and Modules | One obvious direct connector. | Two or three keyed, easy-access connectors. | Four to six connectors or one interface module. | Seven or more connectors, multiple modules, optical connection, hidden locks or high-consequence connector handling. |
| E2 Vehicle-System Integration | Independent accessory; no vehicle-data integration. | Basic power or audio connection. | CAN, steering controls, camera, vehicle menu or amplifier integration. | MOST or premium audio, 360 camera, several vehicle networks, multi-display coordination or complex original-system retention. |
| E3 Power Lifecycle | Simple manual power-on device. | Basic ignition start and shutdown check. | Sleep, wake, delayed shutdown or repeated ignition-cycle verification required. | Network-wake interaction, abnormal battery-drain risk, multi-module power sequencing or difficult shutdown diagnosis. |
| E4 Configuration and Diagnostics | No configuration. | Language, time or basic display settings. | Vehicle profile, CAN, camera, audio or steering-control configuration. | Advanced multi-system setup or diagnostic verification without mandatory vehicle coding or data writing. |
| E5 Recovery Complexity | Disconnect and reconnect restores the system. | Reset or restore default configuration. | Harness, CAN or menu troubleshooting is required. | Firmware reinstall, diagnostic recovery or controlled restoration is required; specialist data writing remains a Level 5 trigger. |
0–15
0–15
then apply mandatory overrides
| Index result | Base level | General meaning |
|---|---|---|
| 0–3 | Level 1 | Minimal work and no advanced electronic procedure. |
| 4–6 | Level 2 | Limited trim work and straightforward vehicle-specific installation. |
| 7–10 | Level 3 | Previous dashboard or automotive-electronics experience is important. |
| 11–15 | Level 4 | Multi-stage work or high consequence makes professional installation the sensible recommendation. |
| Mandatory specialist trigger | Level 5 | A required electronic stage needs a Vehicle Electronics Specialist regardless of the numeric score. |
How the Scoring Matrix Must Be Applied
The score is not a marketing number. Reviewers must use the complete intended installation path, evidence from the actual product version and the most demanding normal step—not a best-case demonstration with parts already removed.
- Score the intended complete installation. Include preparation, original component removal, transfer, routing, temporary testing, configuration, verification and final reassembly.
- Score the normal vehicle in the confirmed configuration. Do not lower a score because an example vehicle was already dismantled or a technician had pre-routed cables.
- Use the highest accurate description within each dimension. Do not average an easy step and a difficult step inside the same dimension.
- Do not add mechanical and electronic scores together. The higher index determines the base level because one difficult electronic process must not be diluted by simple trim work.
- Apply minimum-level conditions after scoring. A fragile premium trim assembly or dual-screen installation may require Level 4 even when the arithmetic result is lower.
- Apply Level 5 last and without averaging. A mandatory coding, protected-data, programming or specialist recovery step overrides every numeric result.
- Keep compatibility and function retention separate. A product can be compatible yet difficult to install, or easy to install while retaining only specifically disclosed functions.
- Do not score missing parts as difficulty. Missing or wrong parts create an Installation Blocked status.
- Do not score an abnormal modified vehicle as the base product. Create a case advisory or mark the base rating inapplicable.
- Record the reason for every 3-point score and every override. The public product summary should show the main reasons without exposing unnecessary internal detail.
- Use conservative evidence when two scores remain plausible. Select the higher score until direct evidence proves the lower condition.
- Review the rating when the product, harness, instructions or recurring support pattern changes. A published level is not permanent merely because the product URL is unchanged.
Boundary and Tie-Breaking Rules
When an index lies at the top of a range and the evidence is incomplete, use the higher adjacent level provisionally rather than the lowest plausible level.
A fragile control panel, optical connector or hard-to-recover configuration may establish a minimum level even if most other work is simple.
An optional camera, amplifier or accessory is scored only for the product configuration being sold or recommended to that vehicle.
If the same product has a basic and an advanced path, publish separate configuration records or state the higher level until the path is confirmed.
Availability of iKAGOO support does not reduce the intrinsic level. It improves assistance but does not replace the tools or physical skill required.
A skilled technician completing the work quickly does not make the product Level 1 or Level 2. Time and difficulty are related but not interchangeable.
Required Reason Codes for High Scores
| Reason code | Use when | Example public wording |
|---|---|---|
| M-ACCESS | Deep dashboard access or several interdependent trim sections are required. | Multiple dashboard sections must be removed in a controlled sequence. |
| M-TRANSFER | Several original brackets, vents, buttons or modules must be transferred. | Original controls and mounting components must be moved to the new assembly. |
| M-FIT | Visible alignment, fragile trim or dual-screen precision is important. | Final panel alignment and even screen gaps require professional handling. |
| E-INTEGRATION | CAN, amplifier, optical, camera or several original systems are integrated. | The installation combines multiple vehicle systems and interface modules. |
| E-POWER | Shutdown, sleep, wake or multi-module power sequencing needs detailed verification. | Repeated ignition and vehicle sleep checks are required before completion. |
| E-RECOVERY | A failed setup cannot be resolved by a simple reconnect or reset. | Structured diagnostic or firmware recovery may be required if setup is interrupted. |
| S-SPECIALIST | Coding, protected data, programming or specialist diagnostics are mandatory. | A vehicle electronics specialist must complete the mandatory electronic stage. |
Illustrative Scoring Examples
These examples explain the method. They are not blanket ratings for every product in a category; the final result must use the exact iKAGOO product and confirmed vehicle record.
| Illustrative product path | Mechanical result | Electronic result | Final decision |
|---|---|---|---|
| Simple direct display adapter One accessible connector, no main dashboard removal and basic power check. | 2 / 15 | 2 / 15 | Level 1, provided no minimum-level condition applies. |
| Vehicle-specific Android head unit Main screen removal, several connectors, one CAN module, USB routing and multiple function checks. | 8 / 15 | 8 / 15 | Level 3. Previous dashboard experience is important. |
| Premium dual-screen cockpit Several trim sections, component transfer, tight alignment, several modules and multi-system verification. | 13 / 15 | 10 / 15 | Level 4 from the higher mechanical index and professional handling requirement. |
| Digital cluster with mandatory data procedure Physical replacement is moderate, but controlled data handling and diagnostic verification are mandatory. | 8 / 15 | 9 / 15 | Level 5 because the specialist procedure overrides the numeric result. |
Mandatory Minimum Levels and Specialist Overrides
Level 3 minimum conditions
- Removal of the main original screen, radio or instrument cluster
- Multiple hidden connectors that require correct lock identification
- More than one interface module requiring organised placement
- Delicate visible trim where beginner trial-and-error is inappropriate
- Required temporary testing before complete reassembly
Level 4 minimum conditions
- Six or more related trim pieces or multiple dashboard regions
- Two independent display components or a precision dual-screen assembly
- Four or more original components transferred
- Cross-dashboard routing or three or more interface modules
- Premium audio, optical, 360-camera or other complex integration
- High-value or fragile trim where incorrect handling has substantial consequences
Vehicle-module coding, protected component adaptation, instrument-data reading or writing, legal mileage synchronisation, module programming, board-level electronic transfer, controlled recovery from interrupted programming, or mandatory vehicle-specific diagnostic procedures make the final rating Level 5.
Connector Complexity Types
Type A: keyed, visible, easy-access direct connector.
Type B: several similar connectors requiring labels or photographs.
Type C: hidden, confined or secondary-lock connector requiring controlled handling.
Type D: optical, fine-terminal, board-level or high-consequence connection. Type D may create a minimum Level 4 or Level 5 requirement depending on the procedure.
Recovery Complexity Classes
RC-0: reconnecting restores operation.
RC-1: reset or default configuration.
RC-2: structured harness, module or CAN troubleshooting; minimum Level 3.
RC-3: firmware reinstall or diagnostic restoration; minimum Level 4 and possibly Level 5.
RC-4: protected data, specialist programming or board-level recovery; Level 5.
What Is Published Alongside the Installation Level
One level alone cannot explain whether the installation is reversible, directly verified or still provisional. iKAGOO uses supporting classifications to make the rating more transparent.
Reversibility Class
RV-A Fully Reversible: no cut wiring or permanent trim change; original parts can be restored.
RV-B Reversible with Component Transfer: brackets, vents, buttons or supported components are transferred but the original system can be restored.
RV-C Limited Reversibility: a non-structural permanent change is required and must be disclosed before purchase.
RV-X Outside Standard: structural cutting, extensive rewiring or an unacceptable irreversible method.
Assessment Evidence Grade
Grade A — Directly Verified: iKAGOO or a supervised technician completed and documented the full installation and verification.
Grade B — Field Verified: a qualified installer supplied sufficient installation and acceptance evidence.
Grade C — Documented Assessment: assessed from the product, harness, instructions and available cases.
Provisional: insufficient complete installation evidence; additional confirmation is required.
Rating Confidence
High: multiple consistent cases and stable product versions.
Moderate: at least one complete case with sufficient supporting evidence.
Limited: mainly document-based or based on incomplete field evidence.
Under Review: a product change or recurring issue is being reassessed.
Rating Applicability
Exact Verified: the vehicle, original system, product version and installation path match the assessed reference.
Equivalent Verified: a related configuration has been checked and no additional installation stage is introduced.
Provisional Variant: a new year, market, LHD/RHD arrangement, amplifier, camera, harness or mounting structure requires further evidence.
The Five iKAGOO Installation Difficulty Levels
The levels are shown from the most specialised to the simplest. Every product level remains subject to the confirmed vehicle configuration, assessed product version and mandatory override rules.
Specialist Installation Required
At least one mandatory electronic stage requires vehicle-specific coding, protected data handling, programming, specialist diagnosis or controlled recovery.
The physical fitting may resemble Level 3 or Level 4, but the complete installation cannot be rated below the required specialist stage.
Level 5 recognition checklist
- Vehicle-module coding or model-specific adaptation is mandatory
- Instrument or vehicle data must be read, written or synchronised legally
- Firmware or module programming is required
- Component protection or security-related adaptation is required
- Original electronic board or internal module transfer is required
- Stable programming power and a controlled procedure are required
- Pre- and post-install diagnostic records are mandatory
- An interrupted process requires specialist recovery
No universal total time applies. The product record must state physical fitting time and the specialist electronic procedure separately.

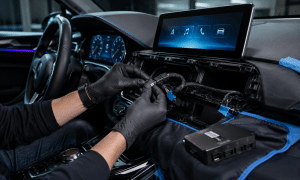

Professional Installation Recommended
Advanced multi-stage dashboard work, multiple components, confined module placement or complex vehicle-system integration makes professional installation the sensible recommendation.
Level 4 recognition checklist
- Several dashboard or instrument-area sections are removed
- More than one display component is installed
- Several original brackets, vents, controls or modules are transferred
- Multiple interface modules require planned placement
- Harnesses must be organised inside limited dashboard space
- Premium audio, optical, 360-camera or multi-system integration is involved
- Staged testing is required before final assembly
- Incorrect trim handling has a high cost or damage consequence
Experienced DIY reference: approximately 4–7 hours only where the installer has relevant vehicle and dashboard experience.
Advanced DIY
Previous dashboard or automotive-electronics experience, correct connector identification, organised module placement and complete temporary testing are normally required.
Level 3 recognition checklist
- Main dashboard trim and the original screen, radio or cluster are removed
- Several vehicle-specific harnesses must be identified
- One or two interface or CANBUS modules are installed
- USB, antenna, microphone or accessory cable routing is required
- One to three original brackets or components are transferred
- Product and vehicle options must be configured
- Temporary power-on testing is required before reassembly
- No mandatory coding, protected data writing or specialist programming is required
Professional reference: approximately 1.5–2.5 hours. A person completing their first automotive dashboard installation should not use the longer time estimate as proof that the task is suitable.
Basic DIY
Limited trim removal, basic hand tools and straightforward vehicle-specific connections may suit a careful owner with good practical ability.
Level 2 recognition checklist
- One or two accessible trim sections are removed
- One easily accessed original component may be removed
- Two to four main keyed connectors are used
- No more than one simple interface module is required
- Routing remains inside the same dashboard area
- Only basic product-menu configuration is required
- No optical, protected data or advanced diagnostic procedure is required
- The installation can be reversed without permanent change
Other reference times: experienced DIY 45–90 minutes; professional 30–60 minutes.
Easy Plug-In
Little or no interior disassembly, one straightforward connection and no specialist electronic procedure.
Level 1 recognition checklist
- No trim removal or only one simple access cover
- One to three obvious keyed connectors
- No original radio, display or cluster removal
- No cross-dashboard cable routing
- No complex interface-module placement
- No advanced configuration, diagnosis or programming
- Basic power-on and connection checks are sufficient
- A connector that requires force immediately invalidates the normal Level 1 process
Other reference times: experienced DIY 15–30 minutes; professional 10–25 minutes.
Formal Qualification, Exclusion and Upgrade Rules for Each Level
The level cards above provide the customer-facing summary. The rules below state what must be true, what must not be present and what evidence should support the classification.
Level 1 — Formal Recognition Standard
All qualifying conditions
- Both indexes are within 0–3.
- No single dimension represents hidden professional judgement or high damage consequence.
- No main original radio, screen or instrument cluster requires removal.
- The intended connection is obvious, keyed and easily accessible.
- No separate vehicle network, premium audio, camera or diagnostic integration is required.
- Basic power-on and visible operation confirm the intended function.
- No Level 3 floor, Level 4 floor or Level 5 trigger is present.
Conditions that disqualify Level 1
- Main dashboard trim must be removed.
- Several similar connectors must be identified.
- A CANBUS, optical, camera or amplifier module must be integrated.
- Wiring must be routed across a dashboard area.
- Sleep, delayed shutdown or repeated ignition behaviour needs detailed diagnosis.
- Incorrect handling could damage expensive visible trim or an electronic board.
Minimum evidence: product and connector photographs, a simple instruction, confirmed product/vehicle applicability and a basic operation result. Level 1 must not be assigned merely because the supplied harness is called plug-and-play.
Level 2 — Formal Recognition Standard
All qualifying conditions
- The higher index is within 4–6.
- No scoring dimension reaches a condition that creates a Level 3 minimum.
- Work remains in one accessible dashboard area.
- Trim removal is limited and the release method is clearly documented.
- Connections are vehicle-specific and straightforward.
- At most one simple interface module normally requires placement.
- Configuration is limited to basic product settings or a confirmed profile.
- Verification does not require diagnostic interpretation.
Upgrade to Level 3 when
- The main original screen, radio or cluster is removed.
- Several hidden connectors or lock types require prior experience.
- Two or more modules must be placed and secured.
- USB, GPS, microphone or camera cables require meaningful routing.
- Temporary assembly and staged testing are essential.
- A beginner could plausibly complete the physical steps but cannot reliably diagnose a normal configuration error.
Minimum evidence: complete kit list, trim-removal and connector guidance, product setup steps, basic verification list and at least document-based confirmation of the assessed path.
Level 3 — Formal Recognition Standard
Typical qualifying conditions
- The higher index is within 7–10 or a Level 3 minimum condition applies.
- The main original display, radio or cluster is normally removed.
- Several connectors and at least one interface module require identification.
- Wiring and modules must be organised so the original dashboard can be rebuilt without compression.
- One or more original brackets or supported components may be transferred.
- Vehicle profile, CAN, audio, camera or steering-control settings may be required.
- The installer must test the temporary installation before final reassembly.
- A structured check is needed for audio, controls, camera, original menus and power behaviour as applicable.
Upgrade to Level 4 or Level 5 when
- Several dashboard regions or two independent display assemblies are involved.
- Four or more original visible components must be transferred.
- Premium audio, optical, 360-camera or multi-network integration is complex.
- High-value trim, dual-screen alignment or difficult module placement has substantial damage consequences.
- Failure recovery requires firmware restoration or diagnostic work beyond normal setup.
- Vehicle coding, protected data, programming or a mandatory specialist diagnosis is required.
Installer requirement: previous dashboard or automotive-electronics experience. A first-time installer is not converted into an experienced installer simply by allowing more hours.
Minimum evidence: clear installation sequence, connector and module locations, product-specific setup, complete acceptance checklist and at least one sufficiently documented installation path before the rating is described as field verified.
Level 4 — Formal Recognition Standard
Typical qualifying conditions
- The higher index is within 11–15 or a Level 4 minimum condition applies.
- Several connected trim sections or more than one dashboard region must be opened.
- Two display components, a wide dual-screen assembly or several major components are installed.
- Several original brackets, vents, controls or modules must be transferred accurately.
- Multiple interface modules require planned locations and controlled cable routing.
- Fitment gaps, fragile premium trim or limited interior space make trial-and-error unacceptable.
- Complex original audio, camera, vehicle-menu or multi-display functions require professional verification.
- Final acceptance requires staged testing and professional troubleshooting judgement.
Level 4 does not include
- Mandatory protected data writing or legal mileage synchronisation.
- Mandatory vehicle-module coding through a specialist platform.
- Mandatory board-level electronic transfer.
- Firmware programming where interruption requires specialist recovery.
- High-voltage EV, SRS repair, ADAS calibration or structural modification.
Installer requirement: a professional automotive electronics installer with demonstrated trim, electrical and system-integration capability. “Professional” means capability, not only a shop name.
Minimum evidence: detailed installation procedure, component-transfer record, module-placement guidance, function-retention list, product-category acceptance record and field evidence appropriate to the published confidence.
Level 5 — Formal Recognition Standard
Level 5 is assigned when a mandatory stage cannot be responsibly completed through normal mechanical fitting and product-menu configuration alone. The trigger—not the highest numeric score—controls the final level.
Mandatory specialist triggers
- Vehicle-module coding, adaptation or security-authorised procedure
- Lawful instrument data reading, writing or synchronisation
- Module firmware programming or flashing
- Component-protection or protected-module adaptation
- Electronic board, memory device or internal original-module transfer
- Mandatory pre- and post-install diagnostic procedure
- Programming power-control and communication monitoring
- Recovery from a process that cannot be restored by reconnect, reset or ordinary firmware reinstall
Required control documents
- Exact vehicle and product applicability
- Required specialist platform and equipment
- Stable power requirement
- Original data or configuration backup where applicable
- Authorised procedure and lawful-use limitation
- Interruption and recovery instruction
- Pre-installation diagnostic state
- Post-installation diagnostic and function record
Illegal mileage alteration, security-system bypass, unsafe calibration or work outside the ordinary iKAGOO scope remains excluded rather than being reclassified as a specialist installation.
Level Comparison at a Glance
| Level | Installer capability | Normal boundary | Evidence expected |
|---|---|---|---|
| 1 | Careful owner following basic instructions | Minimal access, obvious direct connection, basic check | Connector and operation confirmation |
| 2 | Capable first-time DIY or above | Limited trim, straightforward vehicle-specific connection | Complete basic instructions and verification |
| 3 | Experienced DIY or professional | Main unit removal, several connections, routing and system setup | Full procedure and product-category checks |
| 4 | Professional automotive electronics installer | Multi-stage premium installation and complex integration | Detailed field evidence and professional acceptance |
| 5 | Vehicle electronics specialist | Mandatory coding, data, programming, diagnostics or protected recovery | Controlled procedure, diagnostic and recovery records |
What an iKAGOO Product Installation Record Should Show
A product page should not display only “Level 3.” It should explain why the rating applies, what configuration was assessed, what must be verified and how strong the evidence is.
| Published field | Example | Scopo |
|---|---|---|
| Installation Difficulty | Level 3 — Advanced DIY | The final planning level after scores and overrides. |
| Mechanical Index | 8 / 15 | Shows physical work independently. |
| Electronic Index | 6 / 15 | Shows integration and recovery demand independently. |
| Specialist Procedure | Not required | Makes Level 5 status explicit. |
| Reversibility | RV-B | Explains whether original components are transferred but restorable. |
| Evidence and confidence | Field Verified · Moderate | Shows how the conclusion was supported. |
| Vehicle assumption | Confirmed factory-original NBT configuration | Prevents blind application to a different system. |
| Main rating reasons | Main screen removal, six connectors, CAN module and USB routing | Lets the customer understand the work. |
| Required verification | Audio, camera, controls, OEM menu and sleep/wake | Defines completion instead of treating power-on as success. |
| Version record | SKU, hardware, harness, CAN and firmware revisions | Keeps the rating tied to the assessed product. |
How Vehicle Condition Changes the Recommendation
The product’s Base Installation Level describes the intended work on the assessed factory-original vehicle configuration. A customer vehicle can require an additional advisory without changing the product’s published base level.
Base Product Level
- The correct vehicle, original system and product version are confirmed
- The supplied kit is complete
- Relevant factory wiring and modules remain present and serviceable
- No undisclosed previous modification changes the normal installation path
- The product-specific installation and verification method is followed
Vehicle-Specific Case Advisory
- Previous aftermarket head unit or display
- Cut, repaired or unidentified wiring
- Missing original module, bracket or connector
- Accident repair, damaged trim or broken clips
- Unconfirmed amplifier, camera or market configuration
- Existing related warning, audio, camera or network fault
Base Product Level: Level 3. Vehicle-Specific Advisory: professional inspection recommended because previous aftermarket wiring is present. If the actual installation path cannot be confirmed, the base rating is marked Not Applicable until reviewed.
When a Rating Can Be Reused and When It Must Be Reviewed
Exact Verified
The vehicle system, connectors, mounting, product hardware, harness and installation sequence match the assessed reference.
Equivalent Verified
A related vehicle or year has been checked and introduces no additional step, interface or verification requirement.
Provisional Variant
A new market, LHD/RHD arrangement, amplifier, camera, cluster, harness, bracket or firmware requires further confirmation.
A new harness, CANBUS box, mounting structure, screen assembly, supported vehicle configuration, firmware dependency, installation step, repeated sleep issue, repeated factory-function loss or confirmed safety-relevant concern requires review. A confirmed safety-critical issue should place the rating Under Review immediately.
Installer Types Are Defined by Skills, Not Job Titles
| Installer type | Expected capability | Typical level range |
|---|---|---|
| Basic DIY Installer | Uses basic trim tools, identifies screws and keyed connectors, follows a fixed sequence and performs basic checks. | Level 1–2 |
| Experienced DIY Installer | Has removed dashboards, organises harnesses and modules, understands connector locks and can troubleshoot basic black-screen, no-sound or control issues. | Level 2–3; selected Level 4 only with relevant experience |
| Professional Automotive Electronics Installer | Uses electrical test tools, reads connection diagrams, handles premium audio, cameras and CAN interfaces, protects high-value trim and completes structured acceptance tests. | Level 3–4 |
| Vehicle Electronics Specialist | Uses vehicle-specific diagnostic platforms, stable programming power, data backup, coding, programming and controlled recovery procedures. | Level 5 specialist stage |
Remote guidance can assist with documented steps or supported electronic procedures, but it cannot replace safe physical access, correct tools, connector identification or competent on-site handling.
Should You Install the Product Yourself?
The product level does not certify an individual installer. Before choosing self-installation, answer the following questions honestly.
- Have I previously removed automotive interior trim?
- Can I use plastic trim tools without marking visible surfaces?
- Can I correctly use Torx tools, sockets and connector locks?
- Can I identify, label and photograph original connector positions?
- Can I route and secure wiring without pinching or stretching it?
- Can I keep screws, clips and transferred components organised?
- Can I complete temporary testing before rebuilding the dashboard?
- Will I stop when the actual vehicle differs from the instruction?
- Can I reserve enough time without rushing?
- Can I arrange professional help if the work exceeds my ability?
This does not mean the product is unsuitable to buy. It means the installation should be assigned to someone whose capability matches the published level.
What the Published Installation Time Includes
| Time component | How it is shown |
|---|---|
| Hands-on physical installation | Displayed as the main reference range for the appropriate installer type. |
| Configuration and verification | Included only when part of the documented standard process; extended vehicle-sleep observation may be listed separately. |
| Coding or programming | Displayed separately for Level 5 products. |
| Unexpected troubleshooting | Not included in the standard range. |
| Repair of previous modifications | Not included; requires a vehicle-specific estimate. |
| Remote-support waiting time | Not counted as hands-on installation time. |
Estimated Reference Time is used when evidence is limited. Observed Reference Range should be used only after several complete, comparable installations have been recorded.
Preparation, Tools and Vehicle Protection
Protect and document
Protect visible surfaces, separate screws and clips, confirm the kit and photograph original connector positions before removal.
Use suitable tools
Correct trim tools, Torx tools, sockets, protective material and test equipment reduce avoidable damage and rushed improvisation.
- Confirm the product and assessed vehicle configuration match
- Confirm all required modules, adapters, brackets and fasteners are present
- Read the complete product-specific installation guidance
- Work in a clean, dry, well-lit area without time pressure
- Avoid brittle trim removal in extreme cold where possible
- Record existing faults, warning lights and related function status
- Use the product-specific ignition and battery procedure
- Do not apply power with required SRS connections left disconnected
Different vehicles and specialist procedures have different requirements. Follow the product-specific instruction, vehicle workshop information and qualified installer judgement.
Cable Routing, Module Placement and Thermal Management
Organised and secured
Vehicle-specific connectors may be simple to plug in while the surrounding space still requires careful routing and secure module placement.
- Modules are fixed and cannot move or rattle
- Harnesses are not pinched, stretched or sharply bent
- No cable contacts a sharp metal edge
- No module blocks an air duct or moving control
- No cable or module enters an airbag deployment path
- Heat-producing equipment retains reasonable ventilation
- Antenna placement is not unnecessarily shielded by metal
- No abnormal connector, module or harness heat appears during testing
When the Installation Must Be Paused
Do not continue by trial and error
A connector mismatch must be verified before force, terminal changes or unconfirmed modification is attempted.
- A connector requires force or does not lock naturally
- The actual connector or module differs from the assessed reference
- You believe terminal pins must be moved or altered
- A required module, bracket or adapter is missing
- Original wiring is cut, corroded, wet, burned or previously modified
- A fuse blows, wiring becomes hot, or smoke or unusual smell appears
- New airbag, ABS, engine, communication or other warning remains present
- The product repeatedly reboots, remains powered or behaves abnormally
- Programming voltage or communication is unstable
- The work exceeds the installer’s verified capability
Power, Interference and Driver-Use Checks
Power lifecycle
- Normal ignition start and repeated start cycles
- Designed shutdown, sleep and wake behaviour
- No long-term illuminated screen or repeated rebooting
- No abnormal heat, fuse failure or battery-drain symptom
Basic interference observation
- No new audio whine, microphone noise or camera banding
- GPS, Bluetooth, Wi-Fi and radio remain reasonably stable
- Routing avoids unnecessary proximity to obvious interference sources
- No EMC certification claim is made by this observation alone
Display and driver use
- No unacceptable obstruction of forward view or key warnings
- Night brightness and glare are checked
- Buttons, vents and essential controls remain usable
- Video and driver interaction must follow local law and safe-use settings
Complete Installation Control and Acceptance Procedure
The installation must be controlled in stages. A final result cannot be judged only after every trim panel has been rebuilt, because an incorrect connection or trapped cable is then harder to identify and may require unnecessary repeated disassembly.
Stage A — Before Any Original Equipment Is Removed
- Confirm the vehicle record and assessed product version.
- Confirm kit and documentation readiness.
- Record the original dashboard, screen, cluster and visible trim condition.
- Record existing warning lights and related function problems.
- Test relevant original audio, camera, controls and vehicle menu where practical.
- Photograph original connector and cable positions when they will not remain obvious.
- Prepare clean storage for screws, clips, brackets and original parts.
- Protect leather, painted, glossy, aluminium and soft-touch surfaces.
- Follow the product-specific ignition and battery procedure.
- Do not disconnect or power the vehicle contrary to the product or official workshop procedure.
Stage B — Controlled Disassembly
| Control point | Acceptance requirement | Stop condition |
|---|---|---|
| Fastener release | All known screws and hidden retainers are released before force is applied. | A panel remains fixed in an unexpected location or bends excessively. |
| Trim protection | Tools contact protected surfaces and are appropriate for the material. | Visible marking, cracking or uncontrolled clip damage begins. |
| Connector release | Locks, secondary tabs and release levers are identified before pulling. | A connector requires force, twists, exposes a bent terminal or differs from the reference. |
| Original component storage | Screens, controls, vents, modules and fasteners are labelled and protected. | The installer cannot identify which fasteners or parts belong to each stage. |
| SRS and safety-related areas | The work remains outside prohibited repair and deployment paths, and product-specific safety procedures are followed. | The installation would interfere with an airbag connector, deployment path or safety system beyond the documented method. |
Stage C — Connections, Routing and Module Placement
- Every connector matches naturally and reaches its locked position without forced alignment.
- Similar connectors are identified by location, label or photograph rather than trial-and-error.
- Optical or fine-terminal connections are handled without tight bends, contamination or terminal damage.
- Transferred original modules remain connected according to the documented retention method.
- Harness branches are routed without tension on the connector body.
- No cable is trapped across a metal edge, screw boss or sharp plastic rib.
- Service loops are sufficient for final placement but not left loose enough to rattle.
- Modules are fixed so they cannot strike trim, air ducts or moving controls.
- Ventilation openings and heat-dissipation surfaces are not covered.
- Antennas are positioned according to the product instructions and not unnecessarily shielded by metal.
- Wiring does not enter an airbag deployment path.
- USB, microphone, GPS and camera cables exit through planned, protected routes.
- The original unit or screen can return to its normal position without compressing the new harness.
- All temporary ties or protection materials that should not remain are removed before closure.
Stage D — Temporary Power and Configuration Test
The temporary test occurs before full dashboard reassembly, but only after all required connections and any safety-related connectors have been restored according to the proper procedure.
Minimum temporary test
- Normal initial power-on and product boot
- Correct screen image and touch response
- Confirmed vehicle/CAN profile
- Basic audio or cluster-data operation
- Camera switching where applicable
- Physical and steering control response
- No new persistent critical warning
Do not proceed to final assembly when
- The product repeatedly reboots or does not shut down normally.
- Audio, camera, critical cluster data or controls are missing.
- A connector or module becomes abnormally hot.
- A fuse fails or an unusual smell, smoke or electrical noise appears.
- The actual system requires an unconfirmed pin change or software file.
- A new persistent airbag, ABS, engine, cluster or communication warning remains.
Stage E — Mechanical Reassembly Acceptance
| Area | Pass requirement |
|---|---|
| Screen and cluster position | Correct height, angle and seating with no visible twist or unstable movement. |
| Panel gaps | Even and consistent with the intended OEM-style fit; no abnormal raised edge. |
| Vents and controls | Move freely, do not bind and remain reachable from the driving position. |
| Fasteners and clips | All required parts are installed in the correct positions; damaged clips are replaced where necessary. |
| Harness clearance | No panel requires excessive pressure to close and no cable is pinched. |
| Rattle and movement | No loose module, knocking cable or new trim movement is detected during a reasonable static and road-use check where available. |
| Driver view and operation | The new assembly does not unacceptably obstruct the road view, key warnings, vents or vehicle operation. |
Stage F — Power Lifecycle and Vehicle Behaviour
- Product starts normally from more than one ignition cycle.
- Engine cranking does not cause repeated uncontrolled rebooting beyond the product’s intended behaviour.
- Product shuts down or enters standby according to the intended vehicle logic.
- Locking the vehicle does not leave an unintended illuminated screen.
- Unlocking or restarting the vehicle produces normal wake behaviour.
- Dual-screen or multi-module products power up and down in a coordinated way.
- No module or connector develops abnormal heat during the test period.
- No new battery-drain symptom is observed; where a current measurement is required, compare it with the product-specific procedure and vehicle baseline rather than using a universal value.
- No repeated network wake-up, relay cycling or unexplained accessory operation occurs.
- The customer is informed when a longer sleep-observation period is required before final acceptance.
Stage G — Interference and Usability Observation
Signal and noise
- No new alternator or electrical whine
- No unacceptable microphone noise
- No obvious camera banding caused by the installation
- GPS, Bluetooth, Wi-Fi and radio remain reasonably stable
Display usability
- Brightness can be reduced for night use
- Glare is not unreasonably worse than the intended installation
- Important cluster information remains legible
- Touch and physical controls are reachable
Driver-use boundary
- No critical warning is hidden
- No unacceptable obstruction of forward view
- Video and interactive functions follow local law and safe-use settings
- The standard does not certify legal compliance in every country
Stage H — Fault Comparison and Release Decision
Before release, compare the original and final states. Historical faults, temporary disconnection faults and persistent new faults must not be treated as the same thing.
- Existing fault: present before work and recorded.
- Temporary disconnection fault: created during normal component removal and resolved after the system is restored.
- Persistent new fault: remains after correct installation and must be diagnosed before Pass.
- Unrelated fault: reasonably demonstrated to be outside the installed system, but still documented.
A diagnostic record should show whether a new installation-related condition was introduced and whether the final vehicle state is acceptable.
What Counts as a Successful iKAGOO Installation
A screen that turns on is not enough. Installation is complete only when mechanical fitment, electrical behaviour, promised functions, retained functions and final reassembly have been verified.
Verify before returning the vehicle to use
Mechanical fit, system functions, ignition behaviour and relevant original vehicle features must be checked after final reassembly.
- All connectors are fully inserted and locked.
- Harnesses and modules are secured without pressure or interference.
- The product starts, shuts down, sleeps and wakes as intended.
- All promised product functions pass the required tests.
- Applicable original functions pass the published retention checklist.
- No new persistent warning, fault, overheating or abnormal behaviour is present.
- All trim, fasteners, gaps, buttons and vents are restored correctly.
- The result, versions, limitations and evidence are recorded.
Verification Priority
V1 — Critical Before Release
New safety warnings, critical cluster data, camera operation where promised, heat, fuse failure, shutdown, sleep and mechanical interference. A failure prevents release.
V2 — Required Product Function
Audio, controls, cameras, vehicle menu, climate display, USB, connectivity and other advertised functions. Failure means installation is incomplete.
V3 — Convenience and Personalisation
Theme, wallpaper, app layout and non-critical display preferences. These may be adjusted later but should be recorded.
Final Installation Status
Pass: all V1 checks and required advertised functions pass.
Conditional Pass: all critical and core functions pass, but a previously disclosed non-critical limitation remains.
Fail: a critical item, main promised function, secure fitment, normal shutdown or persistent warning does not pass.
Installation Blocked: work was not started or was stopped because the configuration, kit, vehicle condition or installer capability was unsuitable.
Standard Function-Retention Status Terms
Installation difficulty and factory-function retention are separate assessments. Product pages should state the status of each relevant original function rather than using a general claim such as “retains all original functions.”
| Status | Meaning |
|---|---|
| Retained Unchanged | The function remains available in substantially the original way. |
| Retained Through New Interface | The function remains but its access or display location changes. |
| Retained with Limitation | Part of the function remains; the limitation must be stated. |
| Requires Additional Module | A specified adapter is needed. |
| Requires Configuration | The function requires product-menu setup. |
| Requires Specialist Procedure | Coding, programming or specialist adaptation is required. |
| Replaced by New System | The original implementation is replaced by the new product. |
| Not Supported / Not Applicable / Not Yet Verified | The product page must distinguish these three conditions clearly. |
Required Verification by iKAGOO Product Category
The common standard applies to all covered products, but each core product category has additional acceptance checks.
Appendix A — Android Head Unit Verification
Power and system
- Normal boot and shutdown
- Repeated ignition cycles
- Sleep and wake behaviour
- No repeated reboot or abnormal heat
Audio
- All speakers and channels
- Front/rear balance where supported
- Factory amplifier operation
- No new whine or significant noise
Vehicle controls
- Comandi al volante
- Original controller or buttons
- Climate and vehicle information
- Original vehicle settings access where supported
Camera and connectivity
- Reverse switching and return
- Correct image direction
- USB, GPS, Bluetooth and Wi-Fi
- Microphone, CarPlay or Android Auto where supported
Appendix B — Digital Instrument Cluster Verification
- Vehicle speed and selected unit
- Engine speed where applicable
- Fuel level and coolant temperature
- Gear position
- Indicatori di direzione e abbaglianti
- Seat-belt and parking-brake indication
- Engine, ABS and airbag warnings
- Door status and other supported vehicle information
- Mileage and unit handling according to the legal product procedure
- Day/night mode and brightness adjustment
- Startup, shutdown and repeated ignition behaviour
- No new persistent fault or missing critical information
A cluster must not be accepted only because the screen illuminates. Required driving information and relevant warning indications must be verified for the confirmed product and vehicle configuration.
Appendix C — Dual-Screen Cockpit Verification
- Both displays start, shut down and wake correctly
- No screen remains on while the other shuts down
- Vehicle information is consistent across the supported interfaces
- Reverse camera and vehicle-control focus change correctly
- Climate and original controls do not conflict between interfaces
- Brightness and day/night behaviour are acceptable on both displays
- Screen height, alignment and panel gaps are even
- Vents, buttons, steering and driver view remain usable
- Harnesses are not compressed behind the wider assembly
- Multi-module power sequencing and sleep behaviour pass repeated tests
Complete Product-Specific Verification Tables
The universal completion standard applies to every product. The relevant category appendix below must then be completed. Product pages may add model-specific checks but should not remove applicable critical checks.
Appendix A — Android Head Unit Detailed Acceptance Table
| Group | Required check | Priority | Pass evidence |
|---|---|---|---|
| Potenza | Normal boot from cold start and more than one ignition cycle | V1/V2 | Consistent startup without uncontrolled reboot loop |
| Potenza | Normal shutdown, standby, lock and wake behaviour | V1 | No unintended long-term illuminated screen or repeated wake |
| Display | Image, touch zones, rotation, resolution and brightness | V2 | Full usable display with acceptable day/night control |
| Audio | All speakers, left/right channels and front/rear balance | V2 | Correct channel output without missing speakers |
| Audio | Factory amplifier, optical interface or external amplifier operation where supported | V2 | Normal volume and source output with required adapter |
| Audio | No new severe hiss, alternator whine, distortion or turn-on pop | V2 | Reasonable noise performance across common sources |
| Vehicle controls | Steering-wheel buttons and original controller where supported | V2 | Each promised command responds correctly |
| Vehicle controls | Climate, parking and vehicle-setting display where supported | V2 | Correct access and display according to retention status |
| Original interface | Access to the original menu or source where the product promises retention | V2 | Stable switching and usable original functions |
| Camera | Reverse selection, image direction, signal stability and return from reverse | V1/V2 | Automatic and repeatable camera operation |
| Camera | 360, front camera or dynamic guideline function where supported | V2 | All promised views and switching conditions work |
| Connettività | Bluetooth pairing, call audio and microphone | V2 | Stable pairing and intelligible two-way audio |
| Connettività | Wi-Fi, GPS and supported mobile network | V2 | Reasonable connection and positioning in the installed location |
| Connettività | Wired/wireless CarPlay and Android Auto where included | V2 | Connection, audio, control and reconnection pass |
| Inputs | USB ports, microphone, radio and antenna functions included in the package | V2 | Each installed input is identified and tested |
| Regional | Language, time, units, radio region and camera standard | V2/V3 | Configuration matches the customer’s confirmed region |
| Mechanical | Screen fit, bezel gaps, vents, buttons and controller access | V1/V2 | Secure OEM-style fit with no interference |
| Handover | Customer account, privacy, known limitations and support path | V2/V3 | Customer receives the final state and disclosure record |
Appendix B — Digital Instrument Cluster Detailed Acceptance Table
Critical driving information, warning indications, units, brightness, power behaviour and any lawful data procedure must be verified for the confirmed vehicle.
| Group | Required check | Priority | Pass evidence |
|---|---|---|---|
| Primary data | Vehicle speed and unit | V1 | Plausible, stable display in the confirmed unit |
| Primary data | Engine speed where applicable | V1/V2 | Stable and responsive indication |
| Primary data | Fuel level and coolant/temperature display where supported | V1/V2 | Plausible value and no abnormal fixed reading |
| Transmission | Gear position and transmission status | V1 | Correct response through available positions |
| Signals | Left/right turn indicators, hazard and high-beam indication | V1 | Correct side, timing and symbol behaviour |
| Warnings | Seat belt, parking brake, engine, ABS and airbag warnings applicable to the vehicle | V1 | Expected lamp check and no missing or persistent new warning |
| Vehicle states | Door, bonnet, boot and supported vehicle-status information | V1/V2 | Correct state changes for supported inputs |
| Mileage and units | Mileage, trip, mph/km/h, temperature and regional format | V1/V2 | Correct legal procedure and disclosed behaviour |
| Display | Day/night mode, dimming and minimum brightness | V1/V2 | Readable in day and not unreasonably bright at night |
| Potenza | Startup sequence, shutdown and repeated ignition cycles | V1 | Stable operation with no blank or uncontrolled restart |
| Diagnostics | Pre/post diagnostic comparison where required | V1 | No unexplained persistent new cluster or communication fault |
| Specialist data | Backup, lawful synchronisation, programming and recovery record where applicable | V1 | Completed by the required specialist under the documented procedure |
| Mechanical | Cluster seating, visor clearance, steering-column clearance and trim gaps | V1/V2 | Secure fit with no obstruction or visible misalignment |
| Disclosure | Unsupported or interface-changed original displays | V2 | Limitations were stated before purchase and recorded at handover |
Appendix C — Dual-Screen Cockpit Detailed Acceptance Table
| Group | Required check | Priority | Pass evidence |
|---|---|---|---|
| Physical assembly | Both displays are fixed at the intended height, angle and depth | V1/V2 | No movement, tilt conflict or unstable bracket |
| Alignment | Screen edges, surrounding trim and panel gaps are consistent | V2 | OEM-style visual alignment from driver and passenger positions |
| Vents and controls | Transferred vents, buttons, hazard and climate controls move correctly | V1/V2 | No binding, obstruction or disconnected function |
| Power coordination | Both displays start, shut down, sleep and wake correctly | V1 | No single screen remains unintentionally active |
| Information consistency | Supported vehicle and climate information is consistent across interfaces | V1/V2 | No contradictory or frozen supported information |
| Control focus | Original controller, touch and steering controls affect the intended screen or function | V2 | Predictable control without unintended cross-screen conflict |
| Camera and parking | Reverse and parking displays appear on the intended screen and return normally | V1/V2 | Repeatable switching with no black or conflicting screen |
| Luminosità | Day/night and dimming behaviour are acceptable on both displays | V2 | No severe brightness mismatch or unacceptable night glare |
| Routing | Wide assembly closes without compressing harnesses or modules | V1 | Normal seating without force and no connector tension |
| Thermal | Control modules and displays have suitable space and no abnormal heat | V1 | No blocked ventilation or abnormal temperature during testing |
| Driver operation | Driver view, steering movement, vents and primary controls remain usable | V1 | No unacceptable obstruction or interference |
| Noise and stability | No new rattle, module impact, display flicker or repeated reboot | V1/V2 | Stable operation after reassembly and repeated cycles |
Appendix D — Required Handover Record for All Categories
- Confirmed vehicle and original-system configuration
- Product SKU and hardware revision
- Harness, CANBUS/interface and required adapter versions
- Final installation level and supporting classifications
- Installer capability category
- Installation date and evidence status
- Firmware and configuration state
- Required V1 and V2 checks completed
- Original-function retention status
- Known limitations or Conditional Pass items
- New persistent faults: none or documented disposition
- Customer privacy and account handover completed
- Return-to-original parts retained where applicable
- Support and recovery path provided
Regional Configuration, Firmware and Customer Data
Regional configuration
- LHD/RHD arrangement
- mph/km/h and °C/°F
- 12/24-hour time
- Radio, DAB, network and camera standards
- Language, maps and relevant warning symbols
Software and firmware record
- Product serial number and hardware revision
- Original and target firmware versions
- CANBUS version and update reason
- File source, applicability and result
- Backup and recovery method where available
Data and privacy handover
- Customer enters personal account credentials
- Temporary remote access is closed after support
- Unknown applications or firmware are not installed
- Personal accounts and data are removed before return or resale
- Support records avoid unnecessary personal information
Unknown third-party firmware, an unconfirmed hardware revision or unstable programming conditions are not normal installation steps.
How iKAGOO Maintains and Improves the Standard
Minimum Installation Evidence Pack
Before: original dashboard, original-system version, connectors, existing function status, existing faults and previous modifications.
During: critical connections, module placement, cable routing, transferred components and temporary power-on test.
After: final fitment, required functions, warning status, software versions, limitations and final installation status.
Installation Completion Record
Product SKU, vehicle configuration, installation level, installer capability, date, hardware/harness/CAN/firmware versions, required tests, existing limitations, new faults and final Pass/Conditional Pass/Fail/Blocked status.
Support Case Classification
C1 Compatibility · C2 Mechanical Fitment · C3 Connection · C4 Configuration · C5 Factory Function · C6 Software · C7 Power Lifecycle · C8 Installer Error · C9 Product Defect · C10 Documentation Gap.
Repeated cases may trigger an instruction update, accessory change, rating review, temporary assessment hold or sales review.
Immediate Review Triggers
- A confirmed safety-related issue
- A changed harness, interface module, screen structure or firmware dependency
- Repeated sleep, battery, camera, audio or original-function failures
- A newly identified vehicle configuration
- Evidence that the published level materially underestimates the work
Pre- and Post-Installation Fault Record
Record relevant warning lights, existing function faults, camera/audio status and applicable diagnostic trouble codes before work begins. After installation, distinguish historical, temporary disconnection and persistent faults. Do not erase all faults without first determining whether a new condition was introduced.
Assessment Calibration and Reviewer Consistency
Before broad rollout, iKAGOO should calibrate the scoring matrix across representative Android head units, digital clusters and dual-screen systems. Independent reviewers should reach the same level from the same evidence. A difference greater than one level requires the definitions, evidence or override rules to be reviewed before publication.
Rating Publication, Support Feedback and Change-Control Rules
A brand standard creates value only when the rating can be traced, challenged and revised. The following rules connect product assessment, installation evidence and recurring support cases.
1. Evidence Grade Requirements
| Grade | Minimum evidence | Permitted public claim | Limit |
|---|---|---|---|
| Grade A — Directly Verified | A complete installation and acceptance record produced by iKAGOO or a directly supervised technician, including before/during/after evidence. | Directly Verified for the stated reference configuration. | Does not automatically cover a different vehicle option or changed product revision. |
| Grade B — Field Verified | A qualified installer provides sufficient photographs, version data, procedure confirmation and final acceptance results. | Field Verified for the stated configuration. | Evidence must be checked for completeness and consistency. |
| Grade C — Documented Assessment | Product, harness, instruction, connector and support evidence establish the likely path, but a complete verified installation record is not available. | Documented Assessment. | Confidence is normally Limited or Moderate; DIY recommendations should be conservative. |
| Provisional | Insufficient complete evidence or a changed configuration awaiting confirmation. | Provisional Assessment only. | Must not be presented as fully verified. |
2. Rating Confidence Rules
Several consistent, comparable installations; stable hardware and harness revisions; no unresolved recurring issue that changes the assessed path.
At least one complete installation plus sufficient product and technical evidence; some configuration variants may still need separate confirmation.
Mainly document-based, incomplete field evidence, a new product revision or a broad vehicle listing with unresolved variants.
A change, repeated issue or new safety-relevant fact means the public rating should be qualified until review is complete.
3. Support Case Classification and Required Response
| Code | Case type | Typical evidence | Possible standard action |
|---|---|---|---|
| C1 | Compatibilità | Wrong connector, wrong original system, unexpected option | Tighten compatibility questions, split the configuration or mark variant provisional |
| C2 | Mechanical fitment | Bracket, bezel, vent, gap or mounting problem | Revise mounting parts, instructions, score or Level 4 floor |
| C3 | Connection | Connector, lock, optical loop, loose branch or wrong adapter | Improve labels, connector evidence, kit contents or stop conditions |
| C4 | Configuration | CAN profile, camera, amplifier or menu setup | Add a setup table, raise E4 or improve documentation readiness |
| C5 | Factory function | Control, camera, audio, vehicle menu or warning not retained as expected | Correct the retention status and product disclosure |
| C6 | Software or firmware | Update, app, boot, compatibility or recovery issue | Control file applicability, change recovery class or add a Level 5 trigger |
| C7 | Power lifecycle | Shutdown, sleep, wake, reboot or battery symptom | Raise E3, extend observation and review harness/CAN behaviour |
| C8 | Installer error | Skipped step, forced connector, loose module or wrong configuration | Clarify skill requirement, stop condition or instruction sequence |
| C9 | Product defect | Verified hardware fault independent of installation | Quality and sales action; difficulty level changes only when the normal procedure changes |
| C10 | Documentation gap | A necessary step, connector, setting or limitation was not documented | Update documents and reduce documentation readiness until corrected |
4. Immediate Hold and Review Triggers
- One confirmed safety-relevant installation issue
- New persistent airbag, ABS, cluster or critical vehicle warning linked to the installation
- Repeated power, sleep, wake or battery complaints in the same assessed configuration
- Repeated original-function failure not disclosed on the product page
- A harness, CANBUS, interface, screen or mounting revision that changes normal installation
- A firmware requirement that introduces programming or recovery risk
- A newly identified amplifier, camera, cluster or regional configuration
- Evidence that the published rating underestimates the normal work by one or more levels
- Evidence that a stated plug-and-play path requires cutting, drilling or an unconfirmed pin change
- A critical instruction is missing or creates a realistic risk of damage
| Review state | Meaning | Public treatment |
|---|---|---|
| Active | Current evidence supports the published record. | Display normal level, evidence and confidence. |
| Under Review | A material change or recurring issue is being assessed. | Keep the level only with a visible review qualification where appropriate. |
| Assessment Hold | The existing rating cannot be responsibly applied to new orders or variants. | Remove or replace the normal rating with compatibility/technical review required. |
| Withdrawn | The old assessment no longer represents the current product or accepted method. | Archive the record internally and publish a new assessment only after review. |
5. Change-Control Procedure
- Identify the change. Record whether it concerns hardware, harness, CANBUS, accessories, mounting, firmware, instructions or vehicle coverage.
- Determine affected dimensions. Re-score only after reviewing how the normal path, recovery and verification have changed.
- Check overrides and supporting classes. A new firmware procedure may create Level 5 even when the physical product is unchanged.
- Update evidence and confidence. A new revision normally begins with lower confidence until the revised path is verified.
- Update public and internal records together. Product-page level, function-retention status, instructions and support references must not contradict each other.
- Preserve the revision history. Keep the prior rating, reason for change, review date and responsible technical reviewer.
6. Reviewer Calibration
Before broad use, representative products from all three categories should be independently scored by at least two reviewers using the same evidence.
- A difference of one point inside a dimension should be discussed and documented.
- A difference of one full level requires review of definitions, evidence or an overlooked override.
- A difference greater than one level means the assessment is not ready for publication.
- Calibration samples should include a simple head unit, a premium audio or camera integration, a digital cluster and a dual-screen system.
- Recurring support cases should be used to test whether the published difficulty predicts the real troubleshooting burden.
7. Minimum Public Product Summary
| Public field | Required content | Why the customer needs it |
|---|---|---|
| Installation level | Level 1–5 and title | Immediate installer-planning reference |
| Main reasons | Two to four specific reasons | Shows that the level is not arbitrary |
| Recommended installer | Capability category, not merely “professional” | Helps select a suitable person or workshop |
| Specialist procedure | Required / not required / configuration dependent | Prevents an ordinary installer accepting work they cannot complete |
| Reversibility | RV-A, RV-B, RV-C or outside standard | Explains whether the original system can be restored |
| Evidence and confidence | Grade and current confidence | Shows how strongly the rating is supported |
| Vehicle assumption | Confirmed original system and relevant options | Prevents blind application to a different configuration |
| Required verification | Main category-specific checks | Defines what “installed successfully” means |
| Reference time | Estimated or observed range and installer type | Improves planning without presenting a guarantee |
| Version and review date | Assessment version and last review | Shows whether the rating matches the current product |
Typical BMW, Mercedes-Benz, Audi, Porsche and Maserati Applications
These examples show why products from the same broad category can receive different levels. They do not assign one fixed level to every product from a vehicle brand.
BMW Android Head Unit
Original-system version, amplifier, connectors, CAN module and routing can move the work from Level 2 to Level 4.
Mercedes-Benz Dual Screen
Multi-screen fitment, trim transfer, alignment and power sequencing commonly justify professional planning.
Quadro strumenti digitale Audi
Physical fitting may be Level 3–4 while mandatory data or specialist procedures create Level 5.
Porsche Screen Upgrade
Vehicle-specific connectors can still involve high-value trim, component transfer and confined module placement.
Maserati Android Display
Fitment precision, trim condition, original controls and previous modifications affect the vehicle-specific advisory.
Brand does not determine the level
iKAGOO assigns the level from the confirmed vehicle configuration, product version and complete installation path—not simply from whether the car is considered premium or complex.
Common Car Electronics Installation Questions
Can a first-time owner install an iKAGOO Android head unit?
Selected Level 1 and Level 2 products may suit a careful first-time owner. Level 3 normally requires previous dashboard experience, Level 4 recommends professional installation and Level 5 requires a specialist for the mandatory electronic stage.
Does plug-and-play mean no dashboard removal?
No. It describes the intended connector method. The original display, radio, cluster or trim may still need to be removed.
Why can a plug-and-play product still be Level 3 or Level 4?
The complete work may involve several trim sections, many connectors, interface modules, cable routing, limited space, configuration, system integration and detailed verification.
Does iKAGOO require cutting the original wiring?
Under the intended standard method, original vehicle wiring should not normally be cut, drilled into, soldered or permanently modified. A believed need for such work must be reviewed before continuing.
Are the reference times guaranteed?
No. They are planning references for an assessed product and vehicle condition. Previous modifications, damaged trim, missing modules, tools and installer experience can change the actual time.
What if my vehicle has previous aftermarket wiring?
The base product level may no longer apply. iKAGOO should issue a vehicle-specific advisory or require inspection before the installation continues.
Is installation difficulty the same as factory-function retention?
No. Difficulty measures the work and expertise required. Function retention states which supported original features remain, change interface, require an adapter or are not supported.
Can an installation be Level 5 even when the cluster is easy to remove?
Yes. A mandatory data, coding, programming or diagnostic stage overrides the physical score.
What should I do if a connector does not fit?
Stop. Do not force the connector or alter terminals. Photograph the actual connector, product label and vehicle system, then request verification.
Does a higher level mean the product is less suitable to buy?
No. It means the work should be assigned to a person with the appropriate skills and equipment.
Reference Basis and Standard Disclaimer
The iKAGOO standard is developed for iKAGOO products from practical installation factors, product documentation, vehicle configuration review, field evidence and recurring support cases. Public automotive and electronics references inform general principles only.
General reference areas
- ISO 16750-2:2023 — vehicle electrical loads
- ISO 24089:2023 — software update engineering
- ISO/SAE 21434:2021 — cybersecurity engineering
- UNECE vehicle regulations, including UN Regulation No. 10
- NHTSA guidance documents
- iFixit install-difficulty guidance
- RalliTEK installation-difficulty guide
- Crutchfield car-stereo installation guide
Important limitation
The iKAGOO car electronics installation difficulty standard is a product-selection, installation-planning and technical-support framework. It is not a government approval, ISO certification, vehicle-manufacturer certification or substitute for local law, official workshop information or a licensed specialist procedure.
Reference to an external standard does not mean an iKAGOO product or this assessment framework is certified to that standard.
Add comment
