VW Jetta Digital Cluster — 12.3-Inch Digital Cockpit Upgrade
Upgrade the original analog-style Jetta instrument area to a 12.3-inch digital cockpit with HD vehicle information, selectable display layouts and supported map / projection display functions. iKAGOO confirms the correct Jetta version before shipment.

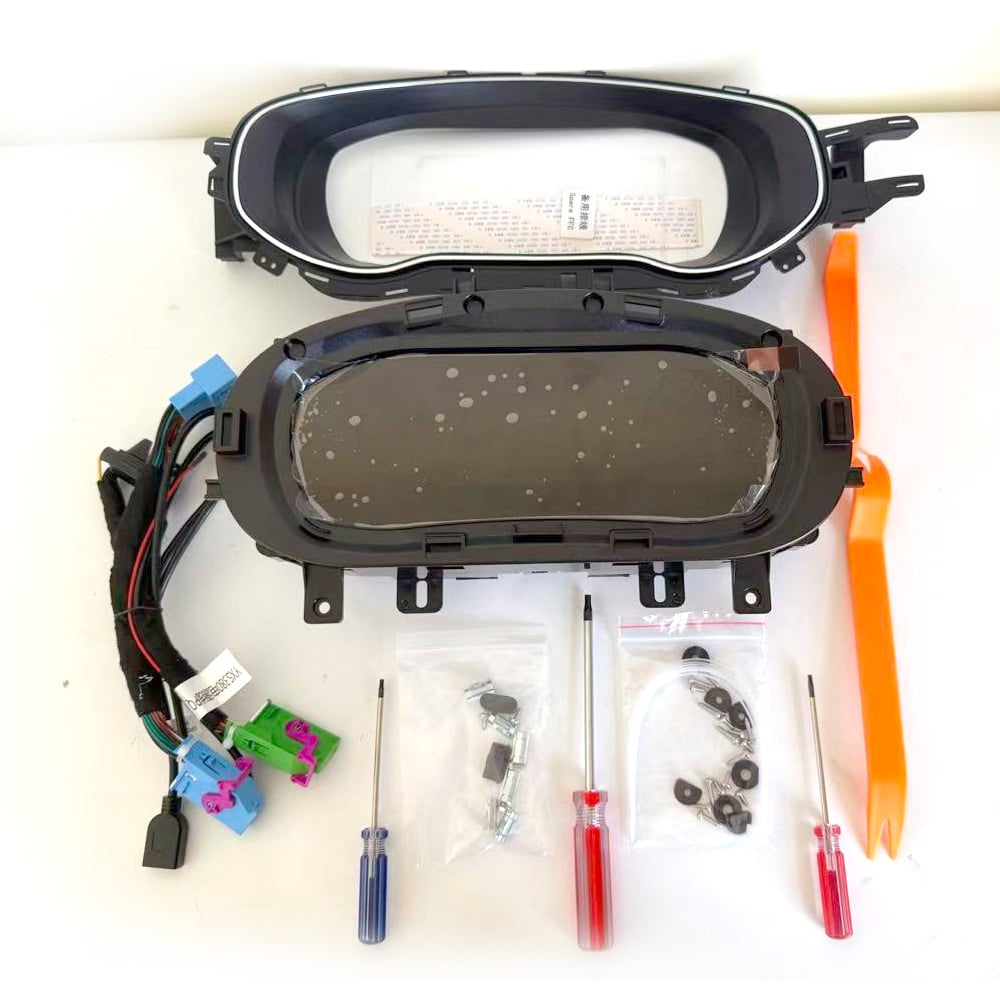

Matched Wiring and Accessories for the VW Jetta Digital Cluster
This is not treated as a universal screen-only order. The wiring and interface route is prepared according to the confirmed Jetta year group, original cluster structure, connector route and selected configuration.
- Vehicle-specific wiring preparation The connection route is prepared according to the confirmed vehicle and cluster version.
- Required interface components Related connection and interface parts are selected for the supported vehicle-data and display route.
- Connector matching matters Similar-looking plugs can use different wiring or pin arrangements. Check the supplied route before powering the cluster.
- Do not cut or force unmatched wiring If a plug or connector does not fit naturally, stop installation and send photos before continuing.
The image below is the common iKAGOO accessories reference. Final supplied components depend on the confirmed vehicle and selected configuration.
Che cos’è questo quadro strumenti digitale della VW Jetta
This VW Jetta Digital Cluster is a 12.3-inch LCD instrument cluster upgrade for selected 2011–2018 Volkswagen Jetta Mk6 / A6 / Typ 1B vehicles.
Trasforma la zona degli indicatori in stile analogico originale in un cruscotto digitale con risoluzione dello schermo di 1920×720, diverse modalità di interfaccia utente, dati del veicolo, informazioni di avviso e funzionalità di controllo tramite volante supportate dopo la corretta configurazione.
I contenuti visualizzati relativi alla navigazione, a CarPlay, ad Android Auto, al DVR o alla telecamera dipendono dal sistema compatibile collegato, dalla configurazione selezionata e dal corretto percorso di connessione.
Verifica il modello esatto della Jetta prima di effettuare l'ordine
- Montaggio di serie Volkswagen Jetta Mk6 / Jetta A6 / Typ 1B. Current listing supports 2011, 2012–2014 and 2015–2018 groups.
- GLI / TDI / regional differences These versions should be checked using dashboard and original cluster photos rather than only model name.
- Foto richieste Send original cluster, complete dashboard and connector photos when requested.
- Posizione del volante Verificare se si tratta di un veicolo con guida a sinistra (LHD) o a destra (RHD) prima di preparare la spedizione.
- Modifiche precedenti Tell iKAGOO about aftermarket wiring, changed head units, cluster repairs or unusual vehicle behavior.
Perché acquistare questo quadro strumenti digitale per VW Jetta da iKAGOO?
A vehicle-specific digital cluster is not only a screen purchase. The important risks are choosing the wrong version, using an incorrect connector route, mishandling the original PCB or discovering an installation issue after the dashboard has already been reassembled.
VW Jetta Digital Cluster Version Matching Before Shipment
Jetta year groups can look similar while using different cluster, dashboard or wiring details. Real product and fitment evidence is more useful than selecting only by vehicle badge.

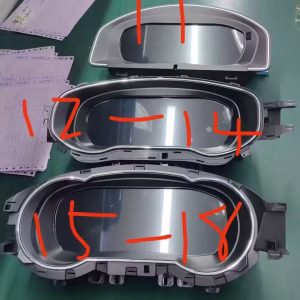

Jetta Mk6 / A6: corrispondenza tra forma e versione del quadro strumenti
iKAGOO checks the original cluster photo, dashboard shape, steering position and connector route before preparing the order.
Diversi percorsi abitativi per le classi della Jetta
Different year groups can use different trim or cluster details. Vehicle year and dashboard photos help reduce wrong-version risk before shipment.
CarPlay or HDMI Selection
Some buyers want CarPlay map display while others require HDMI-related display routing. The correct route should be selected before preparation.
Assistenza per il display del sistema di navigazione GPS online
Supported navigation information can appear closer to the driver's normal line of sight when the connected system and display route are compatible.
Visualizzazione del percorso su fotocamera, DVR, CarPlay e Android Auto
Supported camera, DVR, CarPlay or Android Auto related display content depends on the compatible external system, cable route and selected configuration.
Installation Without Intentional Factory Harness Cutting
The cluster communicates with the vehicle rather than working as an isolated display. The matched-harness direction helps reduce wrong-connection risk and keeps the retrofit more reversible.
Schermo LCD IPS da 12,3 pollici per informazioni di guida più chiare
The wide LCD gives speed, vehicle information and map-related content more room than the original analog-style gauge area.
Eight UI Modes
Multiple UI modes allow different layouts for commuting, navigation and other driving preferences.
Percorso originale del circuito stampato per la conservazione dei dati del veicolo
Supported vehicle information continues through the original-data route, making correct PCB seating and ribbon-cable handling important during installation.
Multiple Dial Styles
Different dial styles allow the display to remain closer to a classic Volkswagen gauge appearance or move toward a more modern cockpit.
Classic, Sport, Navigation and Digital Views
Multiple display modes support different driving situations while keeping important driving data visible.
Vehicle Information and Steering Control Support
The useful value is more than visual design: supported vehicle information, fuel-consumption display, steering-wheel controls and color settings remain part of the digital cockpit route.

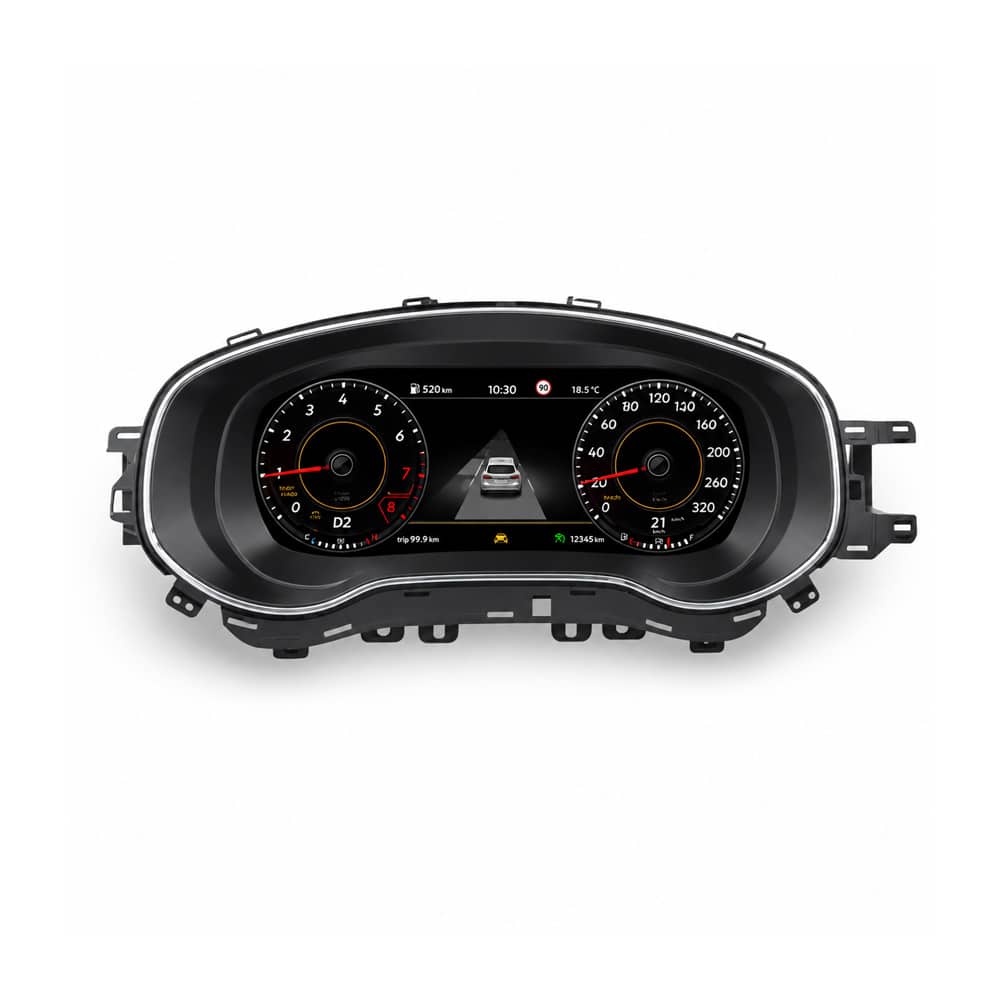

Front Product View
The digital cluster follows the Jetta driver-display direction and gives the cabin a cleaner digital cockpit appearance.
Funzioni originali del veicolo supportate dopo la corretta abbinamento
This VW Jetta Digital Cluster is designed to retain supported vehicle information through the original data route after correct installation. Final behavior depends on the exact Jetta version, cluster structure, CANBUS communication and connection setup.
- Driving data È possibile mantenere visibili velocità, giri al minuto, consumo di carburante, chilometraggio, marcia inserita, temperatura e i dati di viaggio supportati.
- Avviso Supported warning indicators, lamp status and vehicle messages continue through the correct data route.
- Comandi al volante Il funzionamento del volante multifunzione è supportato quando la configurazione del veicolo e quella del CANBUS corrispondono.
- Map and media Navigation, media and projection content depend on the compatible connected system.
- Nessun taglio intenzionale del cavo The supported installation direction uses a matched wiring approach.
- Conferma della versione Dashboard, cluster, steering position and connector information are checked before shipment.
Standard iKAGOO per questo quadro strumenti digitale della VW Jetta
These three results answer different buying questions: whether the upgrade is worthwhile, how strongly it can integrate with the original vehicle after correct matching, and how difficult the installation is.
The Mk6 Jetta remains useful, but the original analog-style cluster makes the cabin feel older. The 12.3-inch LCD creates a visible cockpit upgrade with clearer information, multiple UI modes and stronger map-focused use.
The compatibility result assumes the correct Jetta Mk6 / A6 route, matching cluster structure, supported original PCB route, steering-wheel logic and correct connector preparation.
Level 3 means an experienced DIY user or automotive electronics installer is preferred. Original cluster handling, PCB route, matched harness and function testing require care.
Confronta le opzioni di aggiornamento del quadro strumenti della tua VW Jetta
Conserva il quadro strumenti analogico originale
Lowest effort, but the cabin remains visually older and the driver display stays limited.
- Ideale per Owners who want to keep the vehicle unchanged.
- Punto debole No modern LCD cockpit or larger map-focused display.
Quadro strumenti di ricambio OEM usato
A used original cluster may solve a repair need, but coding, mileage, region, warning-light and unknown-history issues may still exist.
- Ideale per Repair-focused owners with coding support.
- Punto debole Used condition and history can be uncertain.
iKAGOO VW Jetta Quadro strumenti digitale
The iKAGOO route combines the 12.3-inch digital dashboard, vehicle-data direction, multiple UI modes, steering-wheel support, version checking and continued support.
- Ideale per Owners wanting a real cockpit upgrade rather than only replacing a failed cluster.
- Punto di forza Product preparation, installation guidance and long-term after-sales support are part of the buying process.
Riepilogo delle specifiche del quadro strumenti digitale della Volkswagen Jetta
- Tipo di prodotto Retrofit del quadro strumenti digitale / quadro strumenti LCD / Virtual Cockpit.
- Modello compatibile Volkswagen Jetta Mk6 / Jetta A6 / Typ 1B, current listing 2011, 2012–2014 and 2015–2018 groups.
- Dimensioni dello schermo 12.3-inch LCD display.
- Risoluzione 1920×720.
- Modalità di visualizzazione Classic, sport, navigation, digital and other supported layouts.
- Dati del veicolo Speed, RPM, gear, fuel, mileage, temperature and warning information where supported.
- Controlli Supported multifunction steering-wheel controls after correct matching.
- Interazione tra telefono e unità principale CarPlay / Android Auto related display and Android head-unit interaction with the correct setup.
- Potenza 12 V CC, 3 A max, 36 W max.
- Codice articolo YB-110.
- Peso / confezione Peso del prodotto: 3,5 kg; dimensioni della confezione: 42 × 28 × 42 cm.
Informazioni che iKAGOO verifica prima di preparare il tuo ordine
- Anno del modello Confirm the Jetta Mk6 / A6 / Typ 1B year group.
- Foto del cluster Send a clear photo of the original instrument cluster.
- Pannello di controllo Send a clear dashboard photo showing the cluster area.
- Percorso del connettore Wiring details may be checked before shipment.
- LHD / RHD Confirm steering position.
- Configurazione speciale Tell iKAGOO about GLI, TDI, changed head units, aftermarket wiring or previous cluster repairs.
Ambito di installazione di livello 3
Installation typically includes removing the original instrument cluster, handling the original PCB route, fitting the new digital cluster assembly, connecting the matched harness and testing vehicle information before final dashboard reassembly.
- Programma di installazione consigliato Experienced DIY users or automotive electronics installers.
- Prima del collegamento Confirm connector routing before powering the cluster.
- Test di funzionamento Check speed, RPM, fuel, warnings, steering-wheel controls and display modes.
- Test di proiezione Test CarPlay, Android Auto, camera or DVR functions only after the connected system works correctly.
- Condizione di arresto Stop if connector shape, PCB seating, warnings or vehicle data do not match.
- Materiale di supporto Send your order number, vehicle year, photos and short video when requesting assistance.
Interrompi l'installazione prima che si verifichino danni
Do not force an installation that does not match the expected route.
- Il connettore non corrisponde Stop if plug shape, pin direction or cable route differs.
- PCB does not sit correctly Stop if the board or ribbon cable requires abnormal pressure.
- Housing conflicts Stop if the cluster cannot sit correctly in the dashboard.
- Avviso: il comportamento è anomalo Stop if warnings or startup behavior are incorrect.
- È stato individuato un cablaggio precedente Stop if unknown aftermarket wiring or repair work appears.
- Non tagliare né forzare Send photos or video before changing wiring or altering pins.
Support Does Not End After Your VW Jetta Digital Cluster Is Delivered
Vehicle-specific digital clusters can need support beyond the first installation. Vehicle wiring history, head-unit changes, configuration differences and later setup questions can all affect the result. iKAGOO keeps a continued support path available after delivery instead of treating the order as finished once the parcel arrives.
Cosa succede dopo aver effettuato un ordine?
- 1. Recensione del veicolo Vehicle year, dashboard, steering position, cluster and connector information are checked.
- 2. Preparazione della versione The correct cluster and wiring direction are prepared.
- 3. Conferma dell'imballaggio Actual product photos can be requested when additional confirmation is needed.
- 4. Spedizione tracciabile The order ships with tracking after preparation.
- 5. Assistenza all'installazione Photos or video can be reviewed before the installer changes wiring.
- 6. Gestione del software Hardware version should be checked before compatible software or firmware instructions are used.
- 7. Gestione della garanzia Eligible manufacturing defects follow the applicable warranty process.
- 8. Confine di ritorno Return handling depends on product condition, installation status and applicable policy.
- 9. Sostegno costante Support remains available for compatible setup, diagnosis and upgrade guidance.
Supporto iKAGOO per ordini specifici per veicolo
Vehicle-specific electronics need more than a tracking number. Compatibility preparation, international shipping, installation communication, hardware warranty handling and continued support are part of the buying path.
Domande frequenti sul quadro strumenti digitale della Volkswagen Jetta
Will this VW Jetta Digital Cluster fit my 2011–2018 Jetta?
It depends on the exact version. The current listing supports 2011, 2012–2014 and 2015–2018 year groups. Send your vehicle year, dashboard and original cluster information before shipment.
È per la Jetta Mk6 / A6 / Typ 1B?
Yes. Regional names and trims can still differ, so the original cluster, connector route and dashboard should be checked before preparation.
Funzionerà sulle versioni GLI o TDI?
GLI and TDI versions may be supported when the dashboard structure, original cluster route and connector setup match. Confirmation is required before shipment.
Conserva i dati originali del veicolo?
Supported vehicle data can remain visible, including speed, RPM, fuel, gear, mileage, temperature and warning information through the correct data route.
I comandi al volante continueranno a funzionare?
Supported multifunction steering-wheel behavior can remain available where vehicle version and CANBUS communication match.
Does it support CarPlay, Android Auto or navigation?
Compatible CarPlay, Android Auto, navigation, DVR and camera-related display content depends on the selected configuration and connected system.
Devo tagliare il cablaggio di serie?
The supported installation direction is designed to avoid intentional main-harness cutting. Do not force unmatched connectors.
What after-sales support is available after installation?
Continued support is available for compatible setup, diagnosis and upgrade guidance. When asking for help, provide your order number, vehicle information, photos and a short video of the issue when possible.
Why buy from iKAGOO instead of only choosing the cheapest unit?
The main risk with a vehicle-specific digital cluster is not only the display itself. Vehicle matching, connector preparation, installation guidance and continued after-sales support can matter throughout the ownership period.
Choose the Correct VW Jetta Digital Cluster for Your Vehicle
Choose the required product option, then provide your Jetta year and vehicle details so the correct cluster and wiring direction can be prepared before shipment. Support remains available after installation for compatible setup and diagnosis.
